Adding Box Types

This topic describes how to add box types to a company. Box types allow you to add your custom box dimensions to the ShipExec Thin Client.

1. On the ShipExec Management Studio home page, click Companies.
2. From the Companies page, do one of the following:
   • To add box types at the company level, click the icon for the company for which you want to add box types.
   • To add box types at the site level, click the icon for the company, then click the Sites tab, and then click the icon for the site for which you want to add box types.

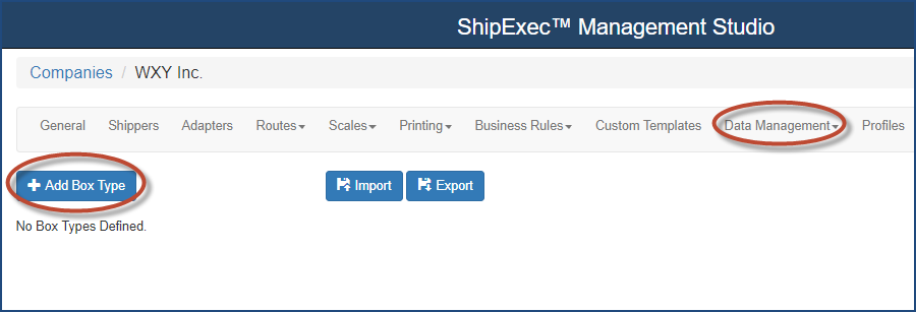

3. Click the Data Management tab and select Box Type. The Box Types page displays.

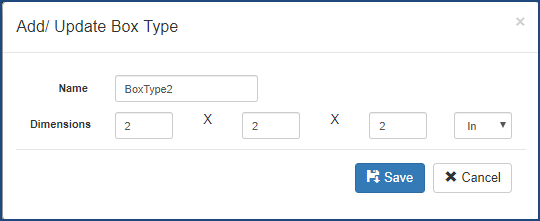

4. Click Add Box Type.The Add/Update Box Type dialog box displays.

5. Type the name of the box type in the Name box.

6. Enter the box dimensions in the provided text boxes.
7. Select the unit of measurement from the drop-down list.

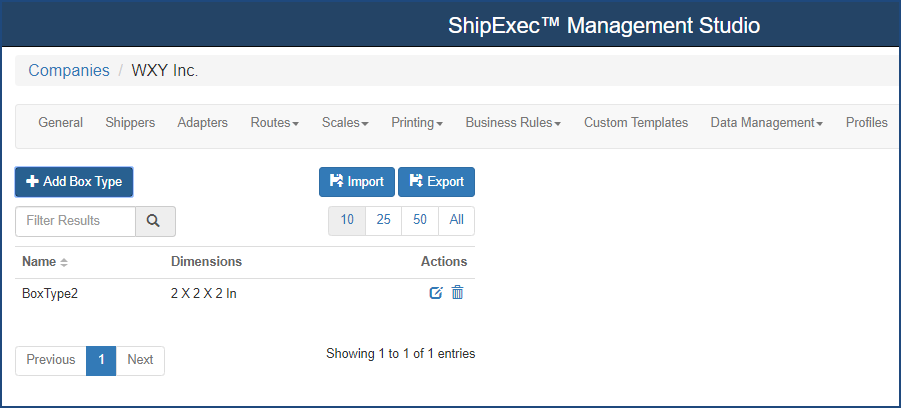

8. Click Save. The Box Type page displays.
